Authenticated Calling

General Use

End-To-End Call Authentication	Consistent Attestation Level	Vetted Businesses Only Platform
- Enterprises "signal" to First Orion before call is "originated" - Branding is "set" in network for finite amount of time by First Orion - Terminated phone call that passes end-to-end check will be "authenticated" and brand accordingly	- Successful, authenticated phone calls terminate with "A-Level" attestation - Enterprises unlikely to become OSP for enterprise-level Stir/Shaken - Some calling platforms obfuscate originating carrier resulting in inconsistent attestation levels	- Businesses must be "Vetted" and "Approved" by First Orion before branding phone calls - Unlike legacy "branding" sources, the Branded Communication platform is a vetted and trusted source of branding

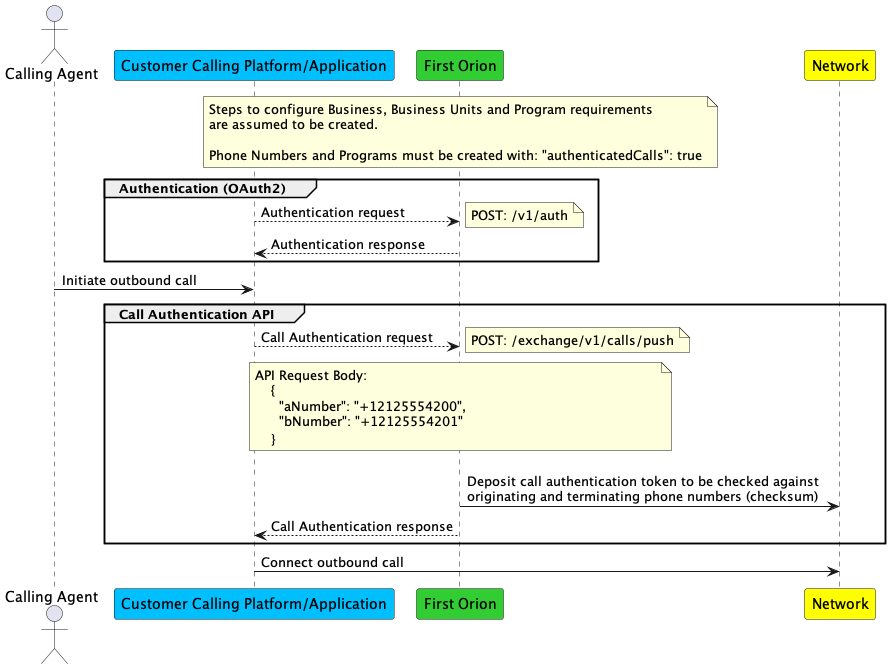

INFORM with Call Authentication API Flow

INFORM with Call Authentication API Details

API Endpoints are secured by OAuth2.0 Authentication

API credential creation, rotation, and disablement can be managed by users in Customer Portal

Delivery to All Major Carriers in the United States

One API endpoint to brand on all networks

Products Dependent on INFORM with Call Authentication API

INFORM with Call Authentication
INFORM with Logo
SENTRY Blocking (with or without branding)

Pre-requisites

First Orion Branded Communications agreement
Access to First Orion Customer Portal
Vetted and Approved Business
Ability to originate phone calls from configured phone numbers in calling platform
Understanding of current calling platform and environment to integrate required API

To create an INFORM with Call Authentication program via the Customer Portal click here. , To create a program via API, follow the steps below.

Step 1 - Generate API Keys

Sign into First Orion's Customer Portal
Navigate to the API Keys section on the left-hand side
Click Generate Key
Copy and save or download the generated keys

Step 2 - Integrate INFORM with Call Authentication API

Verify being able to generate an access token.

curl --location --request POST 'https://api.firstorion.com/v1/auth' \
--header 'X-API-KEY: [API KEY FROM PORTAL]' \
--header 'X-SECRET-KEY: [SECRET KEY FROM PORTAL]' \
--header 'X-SERVICE: auth' \
--header 'accept: application/json'

Verify being able to make an INFORM with Call Authentication API push.

curl --location 'https://api.firstorion.com/exchange/v1/calls/push' \
--header 'authorization: Bearer [FROM GET TOKEN ENDPOINT]' \
--header 'content-type: application/json' \
--data '{
    "aNumber": "+18668561234",
    "bNumber": "+15019515678"
}'

Identify where in the platforms call flow this can live and integrate it.

// Libraries
const axios = require('axios'); // Install with,  npm install axios

// Gets First Orion Auth Token
const getToken = async () => {

    try {
      const response = await axios.post(
        'https://api.firstorion.com/v1/auth',
        null,
        {
          headers: {
            'X-SERVICE':'auth',
            'X-API-KEY': 'your-api-key',
            'X-SECRET-KEY': 'your-secret-key',
            'Content-Type': 'application/json'
          }
        }
      );
      return response.data.token;

    } catch (error) {
      console.error('Error:', error);
      return {
        statusCode: error.response ? error.response.status : 500,
        body: JSON.stringify({ error: error.message })
      };
    }
}

// Create INFORM with Call Authentication push to First Orion for INFORM with Call Authentication
// Find out more at: https://developer.firstorion.com/firstorion-public/reference/callauthentication
const push_callauth = async (token) => {
    let data = JSON.stringify({
        "aNumber": '+15555555555',
        "bNumber": '+15554444444'
    });

    let config = {
        method: 'post',
        url: 'https://api.firstorion.com/exchange/v1/calls/push',
        headers: {
            'Authorization': token,
            'Content-Type': 'application/json'
        },
        data : data
    };

    axios.request(config)
    .then((response) => {
        console.log(JSON.stringify(response.data));
    })
    .catch((error) => {
        console.log(error);
    });
}

// Replace this Create Call function based on your platform
// Download the helper library from https://www.twilio.com/docs/node/install
// Set environment variables for your credentials
// Read more at http://twil.io/secure
const createCall = async () =>{
  const accountSid = "yourAccountSid";
  const authToken = "youAuthToken";
  const client = require("twilio")(accountSid, authToken);

  client.calls.create({
    url: "http://demo.twilio.com/docs/voice.xml",
    to: "+15555555555",
    from: "+15554444444",
  })
  .then(call => console.log(call.sid));
}



// Main function to invoke the push for INFORM with Call Authentication.
const main = async () => {
    const token = await getToken();
    await push_callauth(token);
    await createCall();

}

main()

import json
import requests
import os

def get_token():
    url = "https://api.firstorion.com/v1/auth"

    headers = {
      'X-SERVICE': 'auth',
      'content-type': 'application/json',
      'X-API-KEY': 'your-api-key',
      'X-SECRET-KEY': 'your-secret-key'
    }

    response = requests.request("POST", url, headers=headers)
    data = response.json()
    return data['token']


def push_precall(token):
    url = "https://api.firstorion.com/exchange/v1/calls/push"

    payload = json.dumps({
      "aNumber": "+15555555555",
      "bNumber": "+15554444444"
    })
    headers = {
      'Authorization': token,
      'Content-Type': 'application/json'
    }

    response = requests.request("POST", url, headers=headers, data=payload)
    data = response.json()

    value = {
        'statusCode': response.status_code,
        'body': data['body']['message']
    }

    # Return JSON Object
    return json.loads(json.dumps(value))


# Replace this Create Call function based on your platform
# Download the helper library from https://www.twilio.com/docs/python/install
# Set environment variables for your credentials
# Read more at http://twil.io/secure
import os
from twilio.rest import Client
def createCall():

    account_sid = "your_account_sid"
    auth_token = "your_auth_token"
    client = Client(account_sid, auth_token)

    call = client.calls.create(
      url="http://demo.twilio.com/docs/voice.xml",
      to="+15555555555",
      from_="+15554444444"
    )

    print(call.sid)

# Makes the pre-call push.
token = get_token()
precall = push_precall(token)
# Log pre-call push
print("Pre-call Status: " +str(precall["statusCode"]))
print("Pre-call Message: " +precall["body"])
createCall()

// Libraries
const axios = require('axios'); // Install with,  npm install axios

// Gets First Orion Auth Token
const getToken = async () => {

    try {
      const response = await axios.post(
        'https://api.firstorion.com/v1/auth',
        null,
        {
          headers: {
            'X-SERVICE':'auth',
            'X-API-KEY': 'your-api-key',
            'X-SECRET-KEY': 'your-secret-key',
            'Content-Type': 'application/json'
          }
        }
      );
      return response.data.token;

    } catch (error) {
      console.error('Error:', error);
      return {
        statusCode: error.response ? error.response.status : 500,
        body: JSON.stringify({ error: error.message })
      };
    }
}

// Create Call Authentication push to First Orion for Call Authentication
// Find out more at: https://developer.firstorion.com/firstorion-public/reference/callauthentication
const push_callauth = async (token) => {
    let data = JSON.stringify({
        "aNumber": '+15555555555',
        "bNumber": '+14155550100'
    });

    let config = {
        method: 'post',
        url: 'https://api.firstorion.com/exchange/v1/calls/push',
        headers: {
            'Authorization': token,
            'Content-Type': 'application/json'
        },
        data : data
    };

    axios.request(config)
    .then((response) => {
        console.log(JSON.stringify(response.data));
    })
    .catch((error) => {
        console.log(error);
    });
}

// Set payload information and authorization credentials
// Read more at https://developer.vonage.com/en/api/voice#createCall
const createCall = async () => {
    let data = JSON.stringify({
       "to": [
          {
             "type": "phone",
             "number": "14155550100"
          }
       ],
       "answer_url": [
          "https://example.com/answer"
       ]
    });

    let config = {
        method: 'post',
        url: 'https://api.nexmo.com/v1/calls/',
        headers: {
            'Authorization': 'Bearer <Vonage JWT>',
            'Content-Type': 'application/json'
        },
        data : data
    };

    axios.request(config)
    .then((response) => {
        console.log(JSON.stringify(response.data));
    })
    .catch((error) => {
        console.log(error);
    });
}


// Main function to invoke the Call Authentication push for Call Authentication.
const main = async () => {
    const token = await getToken();
    await push_callauth(token);
    await createCall();

}

main()

import json
import requests
import os

def get_token():
    url = "https://api.firstorion.com/v1/auth"

    headers = {
      'X-SERVICE': 'auth',
      'content-type': 'application/json',
      'X-API-KEY': 'your-api-key',
      'X-SECRET-KEY': 'your-secret-key'
    }

    response = requests.request("POST", url, headers=headers)
    data = response.json()
    return data['token']


def push_precall(token):
    url = "https://api.firstorion.com/exchange/v1/calls/push"

    payload = json.dumps({
      "aNumber": "+15555555555",
      "bNumber": "+14155550100"
    })
    headers = {
      'Authorization': token,
      'Content-Type': 'application/json'
    }

    response = requests.request("POST", url, headers=headers, data=payload)
    data = response.json()

    value = {
        'statusCode': response.status_code,
        'body': data['body']['message']
    }

    # Return JSON Object
    return json.loads(json.dumps(value))


# Set payload information and authorization credentials
# Read more at https://developer.vonage.com/en/api/voice#createCall
def createCall():
    url = "https://api.nexmo.com/v1/calls/"

    payload = json.dumps({
       "to": [
          {
             "type": "phone",
             "number": "14155550100"
          }
       ],
       "answer_url": [
          "https://example.com/answer"
       ]
    })

    headers = {
      'Authorization': 'Bearer <Vonage JWT>',
      'Content-Type': 'application/json'
    }

    response = requests.request("POST", url, headers=headers, data=payload)
    data = response.json()

    # Return JSON Object
    return data

# Makes the pre-call push.
token = get_token()
precall = push_precall(token)
# Log pre-call push
print("Pre-call Status: " +str(precall["statusCode"]))
print("Pre-call Message: " +precall["body"])
createCall()

INFORM with Call Authentication
